Variable classes inside a POU

Every variable you declare inside a Program Organization Unit (POU), a Program, Function, or Function Block, has a class. In IEC 61131-3 the class describes the variable's role in the POU: whether it's private to the POU, part of its calling interface, a reference to a global, or scratch space that doesn't persist between scans.

This page covers each class conceptually. For how to edit the variable table in the editor, adding rows, typing addresses, switching modes, see Variables editor.

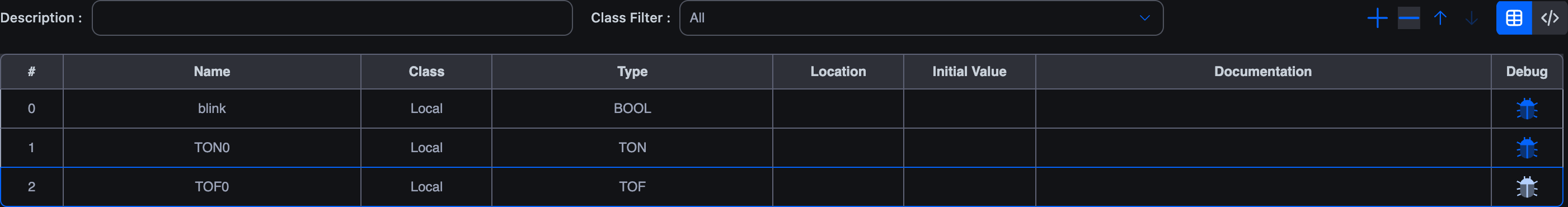

Variables table for the EDF Demo main program showing three Local variables: blink (BOOL), TON0 (TON instance), TOF0 (TOF instance)

Local, `VAR`

The default. A local variable is private to the POU: no caller passes it in and no caller reads it back. In Programs and Function Blocks, local variables retain their value across scans, which is what makes counters, latches, state machines, and any logic with memory work.

iec
VAR
    counter : INT := 0;
    running : BOOL;
    setpoint : REAL := 75.0;
END_VAR

In Functions, local variables behave differently: a function's frame is fresh on every call, so locals are re-initialised every time.

When to choose Local: anything internal to the POU. Counters, accumulators, intermediate calculation results, state flags, timer instances. Also anything you want bound to a specific I/O address via the Location column, that mapping is done with the address, not by changing the class.

Input, `VAR_INPUT`

A parameter the caller passes in when invoking the POU. Inside the POU, an input is read-only: your code reads it; only the caller can write it.

iec
VAR_INPUT
    enable : BOOL;
    target_temp : REAL;
    max_speed : INT := 1000;
END_VAR

When another POU calls this function block, it supplies the inputs:

iec
my_controller(enable := TRUE, target_temp := 72.5, max_speed := 500);

In a graphical body, an Input-class variable becomes a pin on the left side of the function block. When you drop a TON timer onto a Ladder rung, its IN and PT pins are exactly this: VAR_INPUT IN : BOOL; PT : TIME; END_VAR inside the TON definition.

When to choose Input: only on Functions and Function Blocks, and only for values another POU is meant to feed in. A Program is the top of the call chain, its variables are inputs to "the world" via the Location column, not to a caller.

Output, `VAR_OUTPUT`

The mirror of Input. An output is read-write inside the POU and read-only outside: your POU code writes the value; the caller reads it after the call returns.

iec
VAR_OUTPUT
    motor_on : BOOL;
    current_speed : INT;
    error_code : INT;
END_VAR

The caller reads outputs through dot notation on the function-block instance:

iec
my_controller(enable := TRUE, target_temp := 72.5);
IF my_controller.error_code <> 0 THEN
    alarm := TRUE;
END_IF;

In LD or FBD, an Output-class variable becomes a pin on the right side of the block, like TON's Q and ET pins.

When to choose Output: only on Functions and Function Blocks, and only for values another POU is meant to consume.

In Out, `VAR_IN_OUT`

Bidirectional. The caller passes a variable by reference; the POU can read and write it; changes are visible to the caller after the call.

iec
VAR_IN_OUT
    shared_buffer : ARRAY[0..99] OF INT;
    accumulator : REAL;
END_VAR

The caller has to pass an actual variable (not a literal):

iec
VAR
    my_buffer : ARRAY[0..99] OF INT;
    my_total : REAL;
END_VAR

process_data(shared_buffer := my_buffer, accumulator := my_total);
(* my_buffer and my_total may have been modified in place *)

When to choose In Out: large data structures you don't want to copy in and back out (arrays, structures), or accumulators a function block needs to update for the caller.

External, `VAR_EXTERNAL`

A reference to a Global variable declared in the Resource. The External declaration doesn't create a new variable, it links to an existing global by name and type.

iec
VAR_EXTERNAL
    system_mode : INT;
    emergency_stop : BOOL;
END_VAR

For the External to work, a VAR_GLOBAL with the same name and same type must exist in the Resource editor. Reading or writing the External inside the POU reads or writes the underlying global; any other POU with a matching External sees the change on the next scan.

When to choose External: when the same value needs to be visible to several POUs across the project. Setpoints, machine-wide modes, emergency-stop flags. Anything that's project-wide rather than per-POU.

Per-POU values that just happen to be bound to physical I/O (a digital input or a digital output your program owns) are not Externals, they're Local with a Location. Externals exist to share state between POUs, not to map to pins.

See Global variables for the Resource side.

Temp, `VAR_TEMP`

Like Local, but reset to the initial value (or zero / FALSE) at the start of every scan. Programs and Function Blocks only; functions are already temp by nature.

iec
VAR_TEMP
    intermediate_result : REAL;
    loop_index : INT;
END_VAR

When to choose Temp: scratch values that genuinely don't need to persist between scans. Loop counters, intermediate results in a per-scan computation, working values you'd otherwise have to remember to zero at the top of every scan.

Retention summary

How each class behaves across scan cycles:

Class	Retained across scans?	Notes
Local (Program / FB)	Yes	The IEC default for stateful logic.
Local (Function)	No	Fresh frame on every call.
Input	Set by caller	The caller writes it on every invocation.
Output	Yes (FBs)	FB outputs persist until the next call rewrites them.
In Out	References caller	The caller's variable retains based on its own class.
External	Yes	The underlying global is retained for the lifetime of the project.
Temp	No	Reset to initial value at the start of every scan.

RETAIN is a separate IEC concept that means "survive a PLC restart" (power cycle), implemented as VAR RETAIN ... END_VAR. The table editor doesn't expose a retain flag in this build; declare it directly in code mode if you need it.

Picking a class in practice

A short flowchart for the most common cases:

You want…	Class	Notes
To count, latch, or otherwise remember a value within one POU	Local	The default.
To read or write a physical I/O pin from a Program	Local	Set the `Location` to `%IX...` / `%QX...`. The class stays Local.
To define an input pin on a custom Function Block	Input	Only useful for FBs and Functions.
To define an output pin on a custom Function Block	Output	Same constraint.
To share a value across multiple POUs	External (in each POU) + Global (in the Resource)	The same name and type on both ends.
Scratch variables that you don't want to persist	Temp	Reset every scan.

Naming rules

ASCII letters, digits, and underscores. Can't start with a digit.
Names are case-insensitive in IEC matching. motor and Motor are the same identifier and will collide.
Reserved keywords (VAR, END_VAR, IF, TRUE, BOOL, etc.) are not allowed as names.
