Creating data types

The built-in IEC types (BOOL, INT, REAL, TIME, …) cover the basics, but most real projects quickly outgrow them. A program that tracks 20 temperature sensors, each with a value, a validity flag, and a timestamp, becomes a swamp of temp_1, temp_1_valid, temp_1_ts, temp_2, … without user-defined data types.

The editor supports three derivations: Array, Enumeration, and Structure. Once you've defined a custom type, it shows up in the variables editor's type picker alongside the base types, you declare variables of it like any other type.

The three derivations

Derivation	What it gives you	Use when
Array	An ordered collection of elements of the same base type	Sensor banks, recipe tables, ring buffers, lookup tables
Enumeration	A small set of named symbolic values; one variable holds one	State machines (`IDLE / RUNNING / FAULTED`), modes, opcodes
Structure	A composite type with named fields of different types	A sensor record (`value : REAL; valid : BOOL; ts : DATE_AND_TIME`), a recipe, a TCP frame header

Creating a custom type

In the project tree, click the + button at the top → Data Type. A small dialog opens:

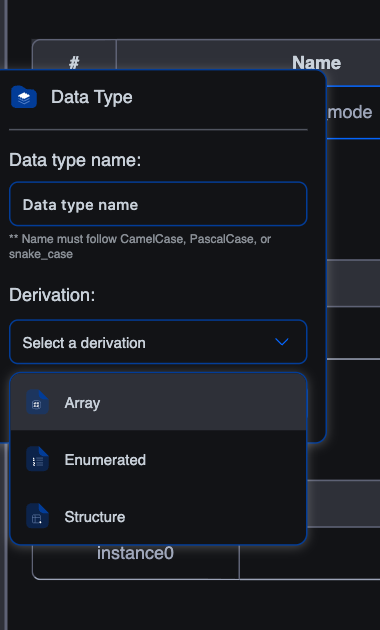

Create Data Type dialog showing the Name field with "Data type name" placeholder, a Derivation dropdown expanded with three options (Array highlighted, Enumerated, Structure), and Cancel / Create buttons

Fill in the form:

Data type name: a CamelCase / PascalCase / snake_case identifier, minimum three characters. The same naming rules as POUs and variables.
Derivation: pick Array, Enumerated, or Structure.
Click Create.

The new type appears under Data Types in the project tree and opens in its own editor tab. The editor varies by derivation, covered on the next three pages.

Where custom types live

Each custom type lives as an entry under the Data Types branch of the project tree. It's project-scoped: anywhere in this project that the type picker is available (variables editor in any POU, the Resource's Global Variables table, even inside another structure's field list), your custom types appear alongside the base types.

A custom type doesn't ship with any data on its own. It's a type, like INT is a type. You declare variables of that type, and those variables hold the data.

iec
VAR
    sensor_1 : SensorReading;       (* a Structure-typed variable *)
    sensors  : TempReadings;        (* an Array-typed variable *)
    mode     : MachineMode := IDLE; (* an Enumeration-typed variable *)
END_VAR

Editing an existing type

Click the type's entry in the project tree to re-open its editor. Changes apply immediately to every variable declared of that type, adding a field to a structure, expanding an array's dimensions, adding a new enum value. Be careful: removing a field that's referenced from a body produces compile errors against every use site.

Renaming and deleting

Rename: right-click the entry in the tree → Rename. The editor walks every reference (variable declarations and body code) and updates them.
Delete: right-click → Delete. Anything that references the type will fail to compile until you fix the references.

What's next

Array data types: defining ordered collections of the same type.
Enumerated data types: a fixed set of named values.
Structure data types: named fields grouped under one type.
Using custom types in code: declaring variables, accessing fields, iterating arrays.
