Library Manager

The Library Manager is where you add, remove, and enable libraries, both the ones bundled with the editor and the ones you install from the public catalogue or author yourself.

Open it from the bottom of the side panel: click + Manage libraries… under the Library section. It opens as a tab in the central editor area with two sub-tabs: System Libraries and Project Libraries.

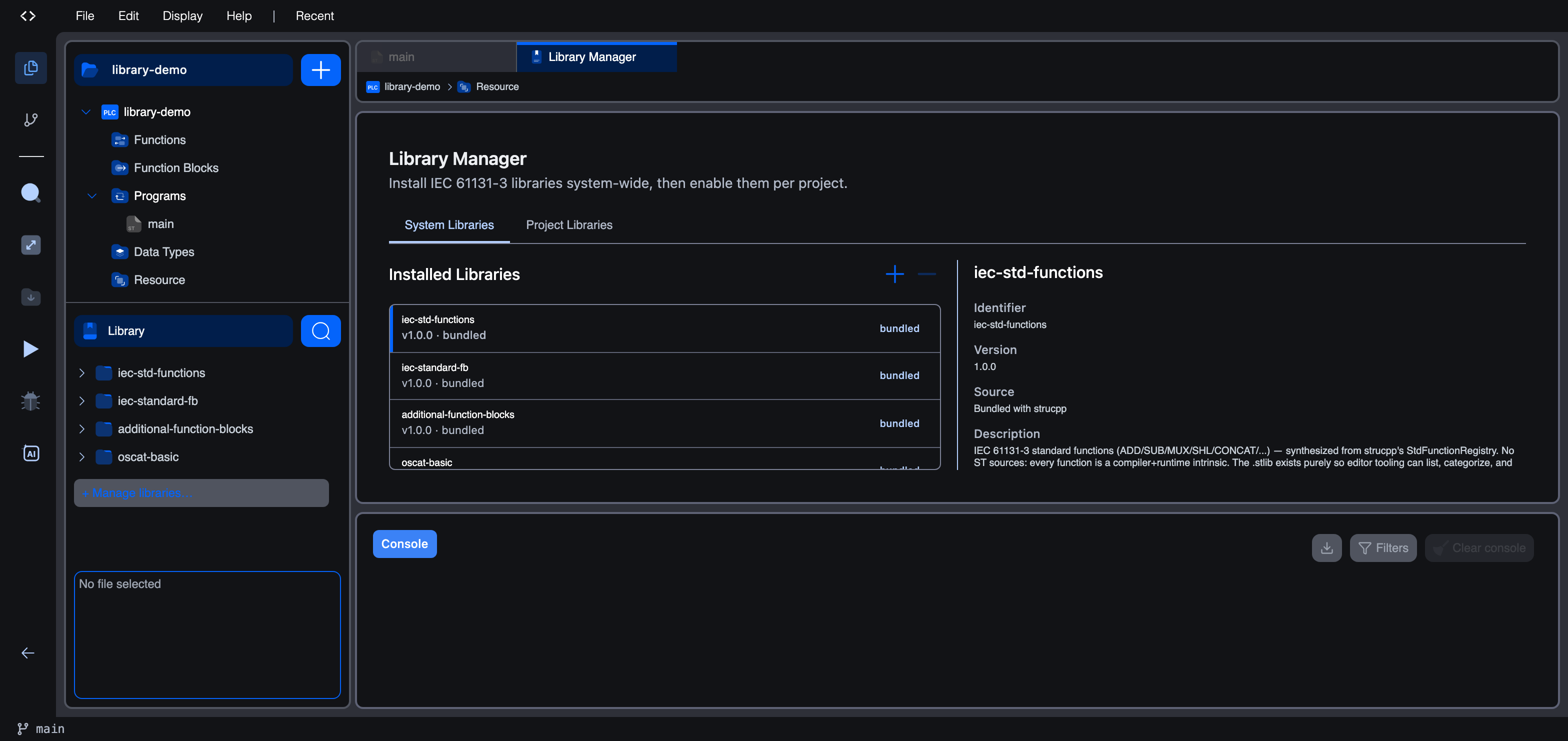

Library Manager open on the System Libraries tab. The installed-library list shows the four bundled libraries plus a user-installed one, with the iec-std-functions details on the right (Identifier, Version, Source, Description, Contents)

The Library Manager works on two levels, which is why it has two tabs:

  • System Libraries: the pool of libraries installed at the editor level. Every project on this editor can opt into any library in this pool.
  • Project Libraries: which libraries from that pool are actually enabled in the project you have open.

A library has to be in the system pool and enabled for the project before its blocks show up in your logic.

System libraries

The System Libraries tab lists the installed pool. Each row shows the library's name, version, origin, and a count of the POUs it contributes; selecting a row shows its full details on the right.

  • Add a library: click the + button and choose a source:

    • Add from catalog… installs a library published to the Autonomy Edge public catalogue.
    • Add from file… imports a .stlib archive (the native format) or a CoDeSys .lib / .library package, which the editor runs through its importer.

    See Installing a Library for the full walkthrough.

  • Remove a library: uninstall an entry from the pool. Bundled libraries (with a bundled badge) cannot be uninstalled.

The bundled set is always present:

LibraryWhat it contains
iec-std-functionsThe IEC standard function catalogue (type conversion, arithmetic, time, bit, comparison, string).
iec-standard-fbIEC standard function blocks: SR, RS, SEMA, R_TRIG, F_TRIG, CTU/CTD/CTUD (+ type variants), TP, TON, TOF.
additional-function-blocksProcess-control extras: RTC, INTEGRAL, DERIVATIVE, PID, RAMP, HYSTERESIS.
oscat-basicThe OSCAT Basic library (see oscat.de for upstream documentation).

Project libraries

The Project Libraries tab shows what's enabled in this project specifically. Bundled libraries are always on (and labelled as such). You add the others to the project from the Available Libraries list on the left:

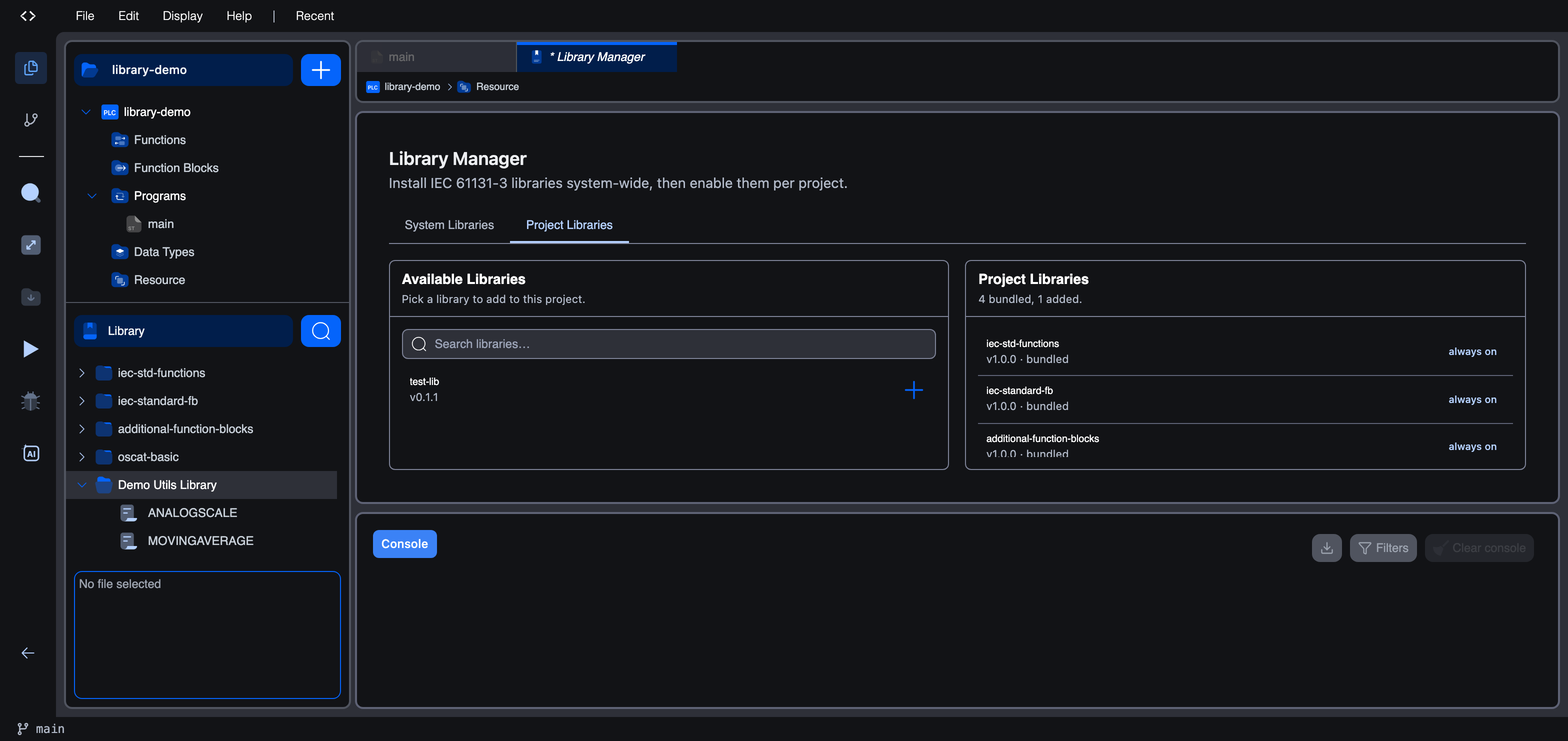

The Project Libraries tab. The Available Libraries list on the left offers libraries from the pool, while the Project Libraries list on the right shows what is enabled, with bundled libraries marked "always on"

When a library is enabled for the project:

  • Its function blocks and functions show up in the Library section of the side panel.
  • Its types are available in the variables editor's type picker under Library types.
  • Its blocks become drag-and-droppable into Ladder and Function Block Diagram bodies.

When a library is disabled, none of the above happens: the library stays in the system pool but doesn't affect this project's surface.

Authoring your own library

Beyond installing external libraries, you can author your own. Create a project of type Library, populate it with functions, function blocks, and data types, then build it into a .stlib archive that anyone can install through this Library Manager, or publish to the public catalogue.

Library projects have no Resource section (no tasks, no instances), and the Build menu offers only Build Library and Clean Build, never an upload.

See Creating a Library for the authoring walkthrough and Publishing a Library to share it.
