Orchestrator not connecting

Symptoms:

  • The orchestrator card shows Inactive indefinitely.
  • CPU / Memory / Uptime fields are blank or -.
  • You just ran the install command but the wizard's Create Orchestrator button never finds the agent.

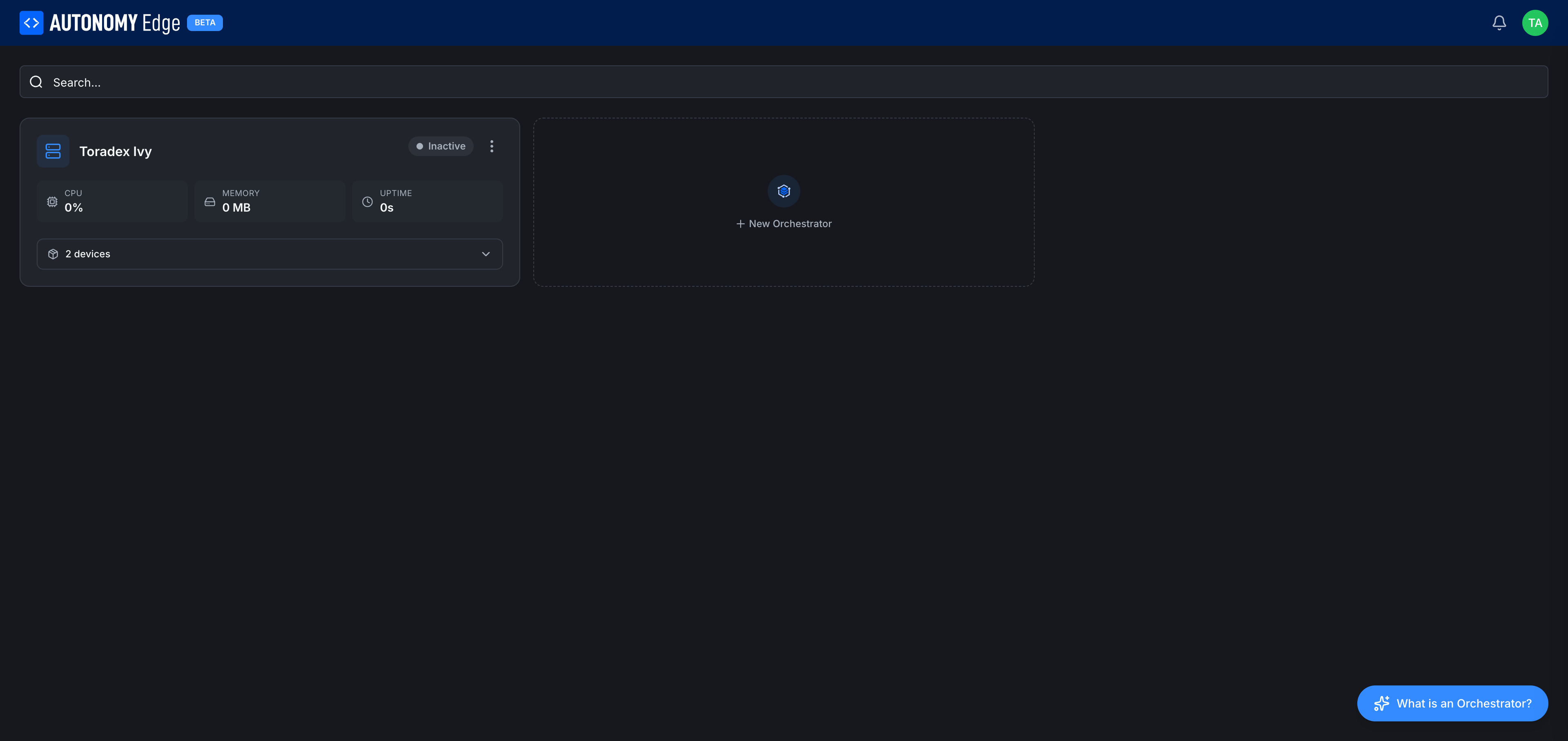

Orchestrator card in Inactive state

Work through the checks below in order, the most common causes are at the top.

1. Did the install command finish?

Re-check the terminal on the edge device. The installer should have ended with a banner showing the Orchestrator ID. If it didn't, the install crashed mid-way.

Common install-time failures:

  • Docker not installed: the installer offers to install Docker on supported distributions. If you skipped that, install it manually: curl -fsSL https://get.docker.com | sh.
  • Permission denied: run with sudo or as root.
  • Kernel module missing: MACVLAN requires the macvlan kernel module. Check with lsmod | grep macvlan. If absent: sudo modprobe macvlan.
  • Network unreachable: the installer downloads the agent container from ghcr.io/autonomy-logic/orchestrator-agent. Confirm with docker pull hello-world to test general Docker network reachability.

Once the install finishes cleanly and prints an Orchestrator ID, return to the wizard and paste it.

2. Did the Orchestrator ID expire?

The ID generated by the wizard expires after 5 minutes. If the install took longer, the ID is now stale.

Fix: re-run curl https://getedge.me | bash on the device. It prints a fresh ID. Paste it into a new wizard (close any expired one, open a new one).

3. Can the agent reach the cloud?

The agent maintains an outbound WebSocket to edge.autonomylogic.com on TCP 443. Things that can block it:

  • Corporate firewall: outbound 443 to edge.autonomylogic.com must be allowed.
  • Outgoing proxy required: set HTTP_PROXY and HTTPS_PROXY env vars when starting the agent. Refer to the agent's docs for proxy configuration.
  • DNS: verify with getent hosts edge.autonomylogic.com on the device. If it fails, check /etc/resolv.conf.

Test reachability:

bash
curl -v https://edge.autonomylogic.com 2>&1 | head -20

You should see a successful TLS handshake (200 OK or 404 from the API root is fine, both prove network reachability).

4. Is the agent container running?

On the device:

bash
docker ps | grep orchestrator-agent

If the container isn't listed, start it:

bash
docker start orchestrator-agent

If start fails, look at the logs:

bash
docker logs --tail 100 orchestrator-agent

Common log entries to look for:

  • ConnectionRefusedError: cloud is blocked or unreachable.
  • Certificate validation failed: the device's clock is wrong. Run ntpdate -u pool.ntp.org or timedatectl set-ntp true.
  • Unauthorized: the orchestrator was deleted in the cloud. Re-pair from the wizard, or run curl https://getedge.me | bash to regenerate.

5. Did somebody delete the orchestrator in the cloud?

If the agent's persistent ID was deleted from the web app, the agent connects but the cloud rejects it. The agent's logs show "Unauthorized" or "Unknown orchestrator".

Fix: create a new orchestrator in the wizard. Run the install command on the device again to get a fresh ID and pair the new orchestrator.

6. Network changed?

If the device moved networks (different LAN, new ISP), the agent's network-monitor sidecar should auto-detect and reconfigure. If that doesn't happen, restart the agent:

bash
docker restart orchestrator-agent

Wait 30 seconds, then refresh the web app.

7. Time skew

mTLS is very sensitive to clock drift. Confirm:

bash
date

If the time is off by more than a couple of minutes from the actual time, the TLS handshake fails. Sync:

bash
sudo timedatectl set-ntp true

8. Still stuck?

  • Run docker logs orchestrator-agent and copy the last 100 lines.
  • Post a thread in the OpenPLC forum under Bug Reports or General Discussion, with:
    • Distro and kernel (uname -a).
    • Docker version (docker --version).
    • The relevant agent logs (redact anything sensitive).
  • Or contact platform support via the Feedback action in the user menu.
