ST Language Basics

Structured Text (ST) is a high-level, text-based programming language defined in the IEC 61131-3 standard. If you've ever written code in Pascal, C, or a similar procedural language, ST will feel familiar right away. It's the go-to choice for complex algorithms, math-heavy calculations, and data processing. Tasks that would be awkward to express in graphical languages like Ladder Diagram or Function Block Diagram.

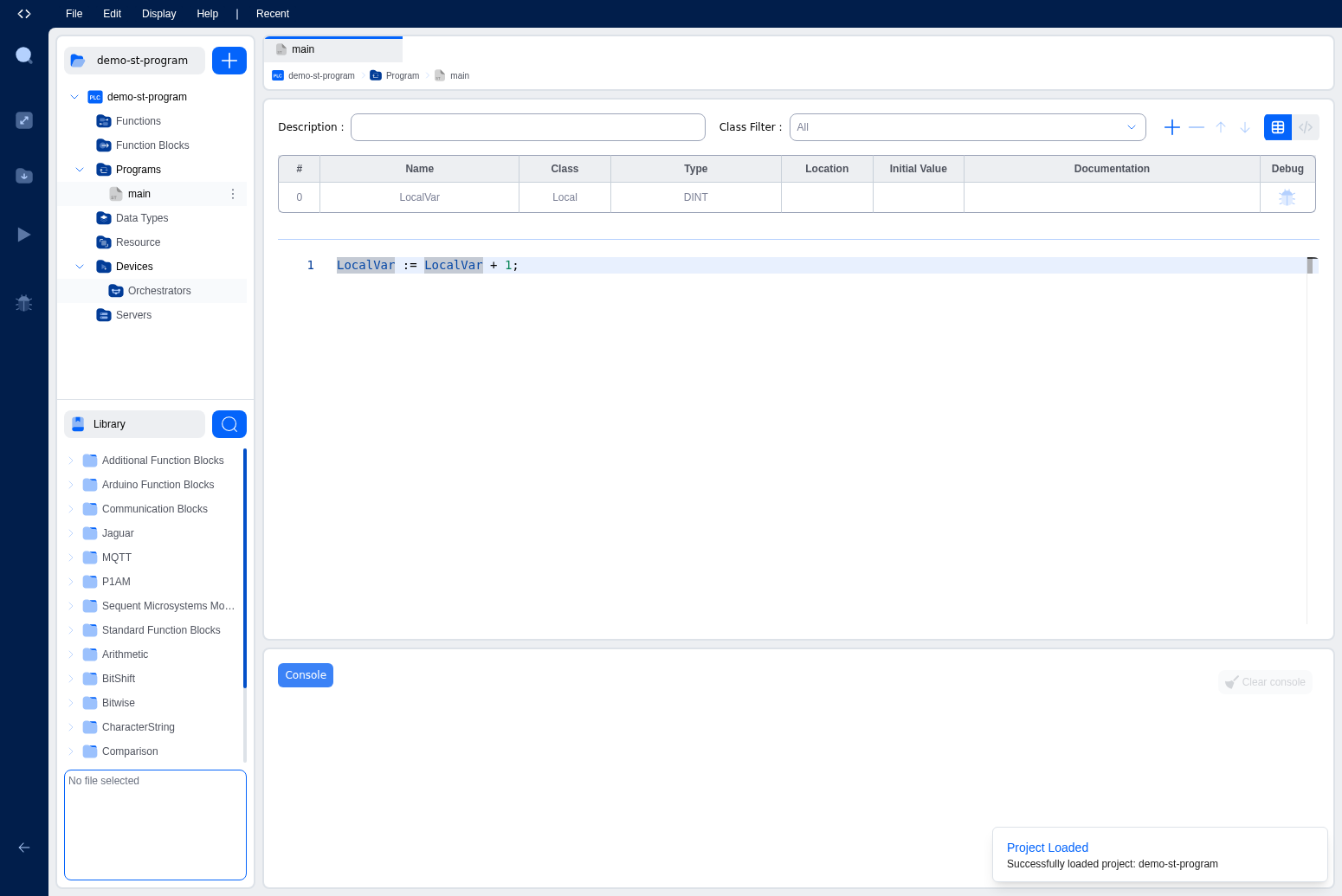

Editor showing a simple Structured Text program with the Variables Table

Introduction to Structured Text

ST gives you a full-featured programming environment with support for:

Arithmetic and logical operations
Control flow structures (IF/THEN/ELSE, CASE, loops)
Function and function block calls
Complex expressions and calculations
Comments for code documentation

Variables in Structured Text

Before you write any ST code, you need to define the variables your program will use in the Variables Table. The Autonomy Edge IDE uses a dual-part structure for ST programming:

Variables Table: Where you declare all variables with their names, types, and classes.
Code Editor: Where you write the actual ST code that uses those variables.

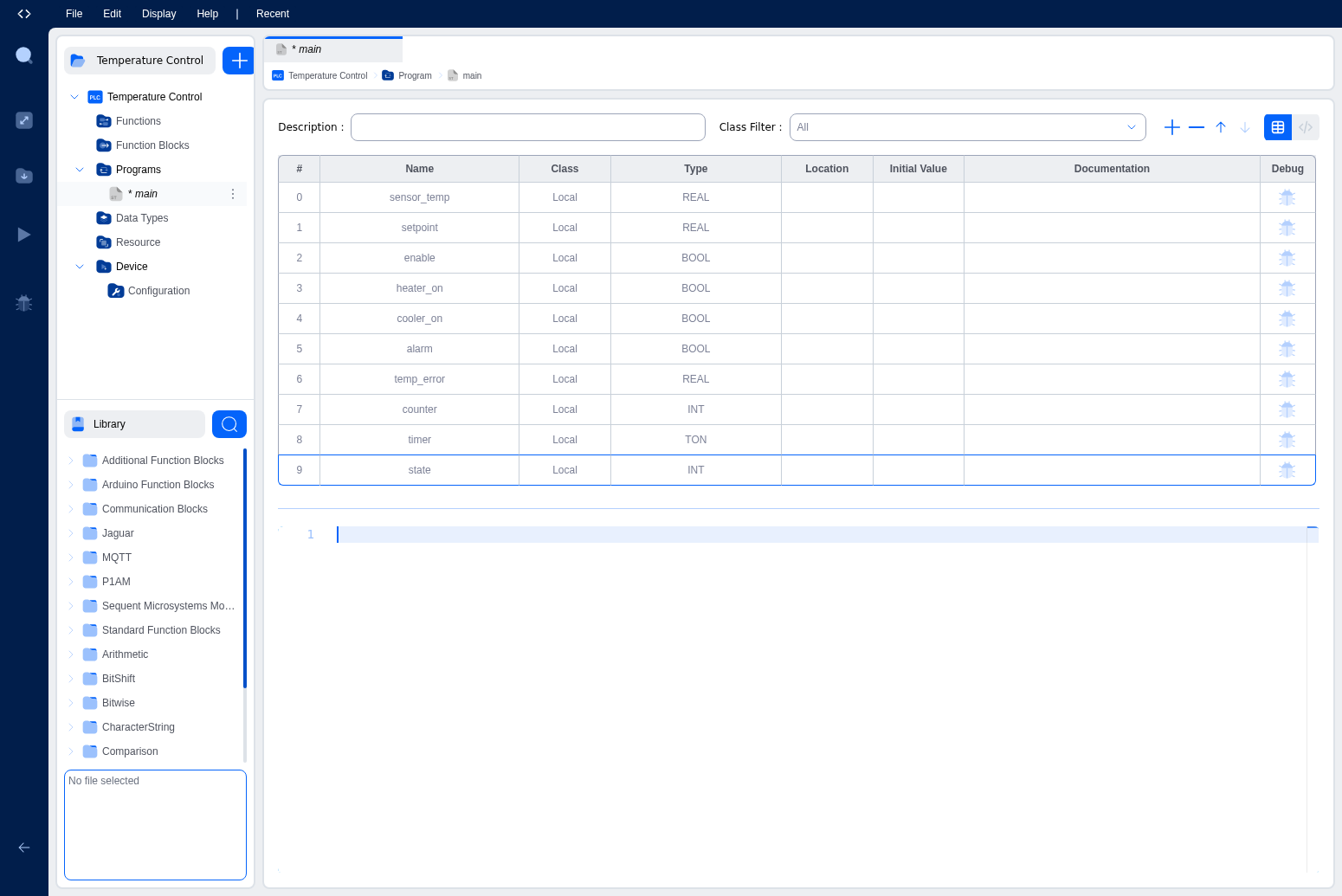

Variables table showing local variables defined for a temperature control program

For detailed information about variable classes (Local, Input, Output, In-Out, External, Global, Temp) and data types, see the Variables and Data Types section.

Tip: When creating Programs (as opposed to Functions or Function Blocks), you should typically use the Local variable class. Input and Output classes are more appropriate for Functions and Function Blocks where parameters need to be passed between POUs (see Program Organization Units (POUs)).

Basic Syntax

Assignment Statements

The assignment operator in ST is := (colon-equals). It assigns a value to a variable.

code
variable_name := expression;

Examples:

code
temperature := 25.5;
counter := counter + 1;
running := TRUE;
result := (value1 + value2) * 3;

Comments

ST supports two types of comments:

Single-line comments (using //):

code
counter := counter + 1;  // Increment the counter

Multi-line comments (using (* ... *)):

code
(* This is a multi-line comment
   that can span multiple lines
   for detailed explanations *)
timer(IN := enable, PT := T#5s);

Statements and Semicolons

Every statement in ST must end with a semicolon (;). You can put multiple statements on the same line, but it's best practice to keep one statement per line for readability.

Operators

ST provides a full set of operators for arithmetic, comparison, logical, and bitwise operations.

Arithmetic Operators

Operator	Description	Example
`+`	Addition	`result := a + b;`
`-`	Subtraction	`result := a - b;`
`*`	Multiplication	`result := a * b;`
`/`	Division	`result := a / b;`
`**`	Exponentiation	`result := a ** 2;`
`MOD`	Modulo (remainder)	`result := a MOD 10;`

Example:

code
temp_error := setpoint - sensor_temp;
power_level := (error * gain) / 100;
index := (counter + 1) MOD 1000;

Comparison Operators

Operator	Description	Example
`=`	Equal to	`IF value = 100 THEN`
`<>`	Not equal to	`IF status <> OK THEN`
`<`	Less than	`IF temp < 0.0 THEN`
`>`	Greater than	`IF temp > 50.0 THEN`
`<=`	Less than or equal	`IF count <= 10 THEN`
`>=`	Greater than or equal	`IF level >= threshold THEN`

Logical Operators

Operator	Description	Example
`AND`	Logical AND	`IF enable AND ready THEN`
`OR`	Logical OR	`IF alarm OR warning THEN`
`XOR`	Logical exclusive OR	`IF input1 XOR input2 THEN`
`NOT`	Logical negation	`IF NOT running THEN`

Operator Precedence (highest to lowest):

Parentheses ( )
Function calls
Exponentiation **
Negation -, NOT
Multiplication *, Division /, MOD
Addition +, Subtraction -
Comparison <, >, <=, >=, =, <>
Boolean AND, XOR, OR

Example:

code
IF (sensor_temp > 50.0) OR (sensor_temp < 0.0) THEN
    alarm := TRUE;
END_IF;

Bitwise Operators

Operator	Description	Example
`SHL`	Shift left	`result := value SHL 2;`
`SHR`	Shift right	`result := value SHR 1;`
`ROL`	Rotate left	`result := value ROL 3;`
`ROR`	Rotate right	`result := value ROR 2;`

Control Structures

ST provides several control structures for managing program flow.

IF/THEN/ELSE Statement

The IF statement lets you conditionally execute blocks of code.

Basic IF:

code
IF condition THEN
    // statements
END_IF;

IF/ELSE:

code
IF condition THEN
    // statements when TRUE
ELSE
    // statements when FALSE
END_IF;

IF/ELSIF/ELSE:

code
IF condition1 THEN
    // statements for condition1
ELSIF condition2 THEN
    // statements for condition2
ELSIF condition3 THEN
    // statements for condition3
ELSE
    // statements when all conditions are FALSE
END_IF;

Example. Temperature Control:

code
IF enable THEN
    temp_error := setpoint - sensor_temp;

    IF timer.Q THEN
        heater_on := TRUE;
        cooler_on := FALSE;
    ELSIF temp_error < -2.0 THEN
        heater_on := FALSE;
        cooler_on := TRUE;
    ELSE
        heater_on := FALSE;
        cooler_on := FALSE;
    END_IF;
ELSE
    heater_on := FALSE;
    cooler_on := FALSE;
END_IF;

CASE Statement

The CASE statement provides multi-way selection based on a selector value.

code
CASE selector OF
    value1:
        // statements for value1
    value2, value3:
        // statements for value2 or value3
    value4..value6:
        // statements for range value4 to value6
ELSE
    // statements for all other values
END_CASE;

Example:

code
CASE state OF
    0:  // Idle state
        motor_on := FALSE;
        ready := TRUE;
    1:  // Starting state
        motor_on := TRUE;
        ready := FALSE;
    2:  // Running state
        motor_on := TRUE;
        ready := TRUE;
ELSE
    // Error state
    motor_on := FALSE;
    ready := FALSE;
    alarm := TRUE;
END_CASE;

FOR Loop

The FOR loop repeats a block of code a specific number of times.

code
FOR counter := start_value TO end_value BY step DO
    // statements
END_FOR;

The BY step part is optional (default is 1).

Example:

code
FOR i := 0 TO 9 DO
    buffer[i] := 0;  // Initialize array elements
END_FOR;

FOR index := 10 TO 0 BY -1 DO
    countdown[index] := index;  // Count down
END_FOR;

WHILE Loop

The WHILE loop repeats as long as a condition is TRUE. The condition is checked before each iteration.

code
WHILE condition DO
    // statements
END_WHILE;

Example:

code
WHILE (counter < 100) AND (NOT done) DO
    counter := counter + 1;
    IF process_item(counter) THEN
        done := TRUE;
    END_IF;
END_WHILE;

REPEAT/UNTIL Loop

The REPEAT loop executes at least once and repeats until a condition becomes TRUE. The condition is checked after each iteration.

code
REPEAT
    // statements
UNTIL condition
END_REPEAT;

Example:

code
REPEAT
    value := read_sensor();
    attempts := attempts + 1;
UNTIL (value > 0) OR (attempts >= 10)
END_REPEAT;

EXIT Statement

The EXIT statement immediately terminates the innermost loop (FOR, WHILE, or REPEAT).

code
FOR i := 0 TO 99 DO
    IF buffer[i] = target THEN
        found_index := i;
        EXIT;  // Stop searching
    END_IF;
END_FOR;

RETURN Statement

The RETURN statement exits a function or function block immediately. For functions, it returns the function's value.

code
IF error_condition THEN
    RETURN;  // Exit early
END_IF;

Function and Function Block Calls

ST lets you call functions and function blocks to perform operations and manage complex logic.

Function Calls

Functions return a single value and can be used directly in expressions.

code
result := ABS(value);           // Absolute value
max_value := MAX(a, b, c);      // Maximum of values
length := LEN(text_string);     // String length

Function Block Calls

Function blocks are called with named parameters and maintain internal state between calls.

Basic syntax:

code
function_block_instance(parameter1 := value1, parameter2 := value2);

Example with TON (Timer On-Delay):

code
timer(IN := (temp_error > 2.0), PT := T#5s);

IF timer.Q THEN
    // Timer has elapsed
    heater_on := TRUE;
END_IF;

In this example:

timer is the function block instance (declared as type TON in the Variables Table)
IN and PT are input parameters
Q is an output accessed using dot notation (timer.Q)

Time Literals

ST supports time literals for specifying durations:

code
T#5s          // 5 seconds
T#100ms       // 100 milliseconds
T#1m30s       // 1 minute 30 seconds
T#2h15m       // 2 hours 15 minutes
T#1d12h       // 1 day 12 hours

Example:

code
timer(IN := start_signal, PT := T#5s);
delay_time := T#250ms;

Best Practices

Use meaningful variable names: Choose descriptive names that indicate the variable's purpose.
Add comments: Document complex logic and non-obvious operations.
Keep expressions simple: Break complex calculations into multiple steps for clarity.
Use parentheses: Make operator precedence explicit in complex expressions.
Consistent indentation: Indent code blocks within control structures for readability.
One statement per line: Avoid cramming multiple statements on one line.
Initialize variables: Set appropriate initial values in the Variables Table.
Use appropriate data types: Choose the smallest data type that meets your needs.

What's Next?

ST Programming Examples: Practical examples and common patterns
ST Editor Features: Syntax highlighting, IntelliSense, and code completion
Variables and Data Types: Comprehensive guide to variable management
